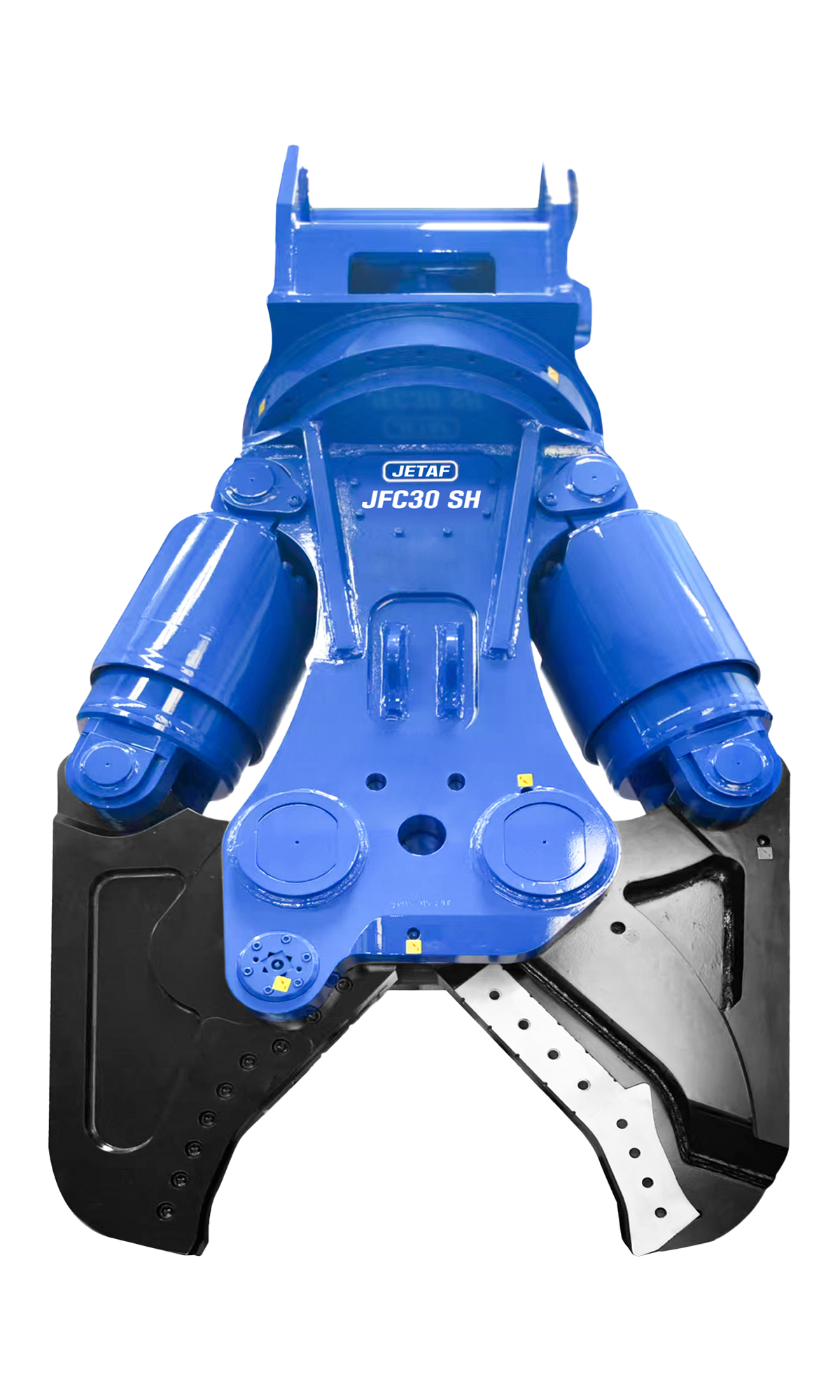

유압식 쉐어 (SH)

Specification		JFC08 SH	JFC25 SH	JFC30 SH	JFC40 SH
Max Opening Width	mm	420	680	745	800
Weight	kg	650	2500	2960	4200
Shear Force (average)	kN	486	1550	1660	2540
Working Pressure (Cylinder)	kg/cm²	180-250	300-350	300-350	300-350
Oil Flow (Cylinder)	L/min	50-100	180-240	180-240	180-240
Working Pressure (Motor)	kg/cm²	60-90	120-160	120-160	120-160
Oil Flow (Motor)	L/min	20-30	30-50	30-50	30-50
Suitable Carrier	ton	6-13	17-25	20-30	30-40
Rotation Mode	-	Hydraulic Rotating, 360° Free Rotation

Dimensions		JFC08 SH	JFC25 SH	JFC30 SH	JFC40 SH
A (Total Length)	mm	1145	1727	1777	2115
B (Max Opening Width)	mm	420	680	745	800
C (Cutter Length)	mm	380	560	610	710
D (Overall Width)	mm	486	685	760	840
E (Jaw Depth)	mm	327	510	550	650
