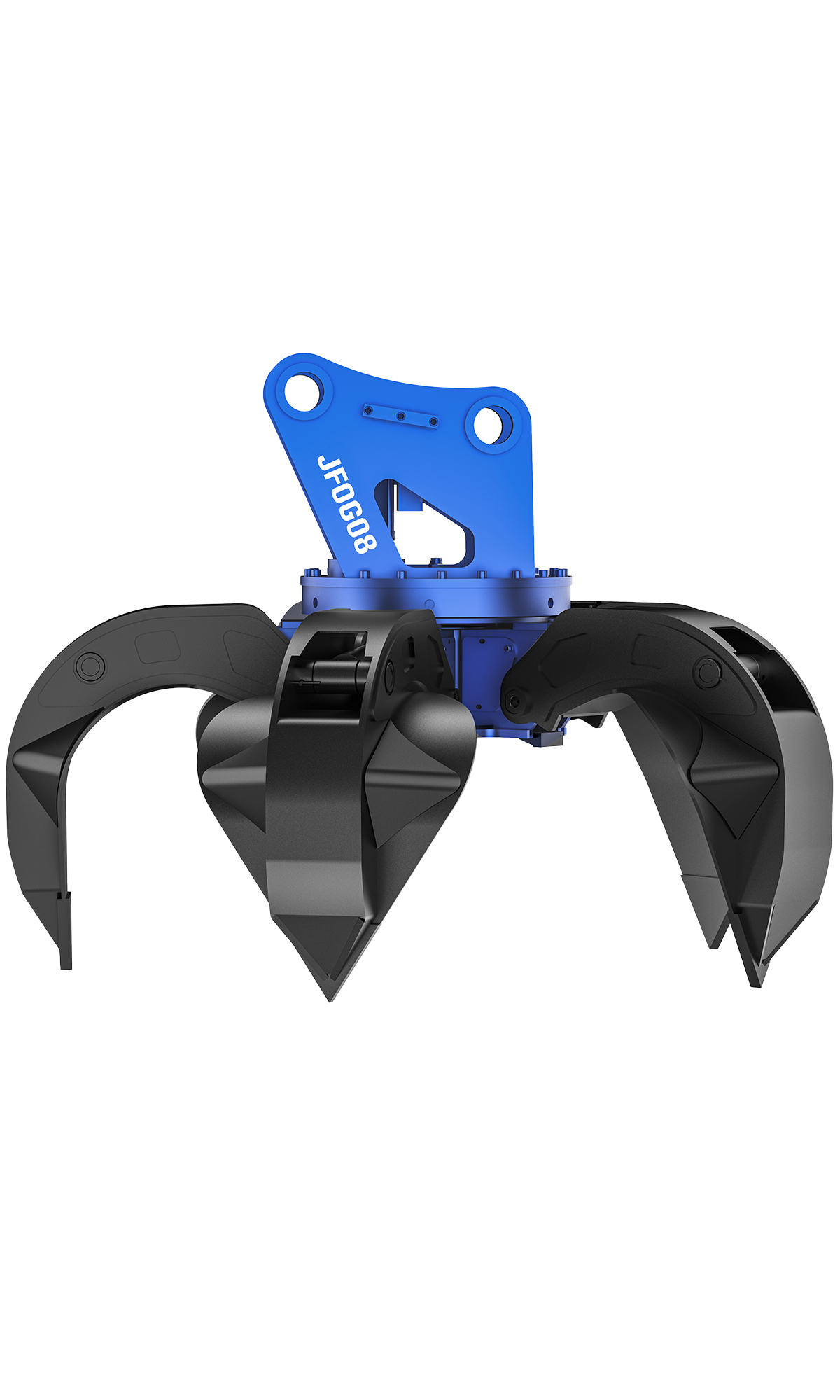

오렌지 그래플

Standard Models		JFOG06	JFOG06H	JFOG08	JFOG08H	JFOG10	JFOG10H
Max Opening Width	mm	1650	1650	1800	1800	2050	2050
Weight	kg	800	1040	1250	1490	1530	1680
Working Pressure (Cylinder)	kg/cm²	140-180	140-180	160-200	160-200	160-200	160-200
Oil Flow (Cylinder)	L/min	80-120	80-120	100-140	100-140	130-180	130-180
Working Pressure (Motor)	kg/cm²	120-160	120-160	120-160	120-160	120-160	120-160
Oil Flow (Motor)	L/min	30-50	30-50	30-50	30-50	30-50	30-50
Payload Capacity	kg	1100	1000	1500	1300	1700	1700
Grab Configuration	-	5	5	5	5	5	5
Suitable Carrier	ton	12-16	12-16	17-24	17-24	25-35	25-35

Upgraded Model		JFOG06P	JFOG06PH	JFOG08P	JFOG08PH
Max Opening Width	mm	1650	1650	1800	1800
Weight	kg	1100	1200	1550	1700
Working Pressure (Cylinder)	kg/cm²	140-180	140-180	160-200	160-200
Oil Flow (Cylinder)	L/min	100-140	100-140	130-180	130-180
Working Pressure (Motor)	kg/cm²	120-160	120-160	120-160	120-160
Oil Flow (Motor)	L/min	30-50	30-50	30-50	30-50
Payload Capacity	kg	1100	1000	1500	1300
Grab Configuration	-	5	5	5	5
Suitable Carrier	ton	12-16	12-16	17-24	17-24

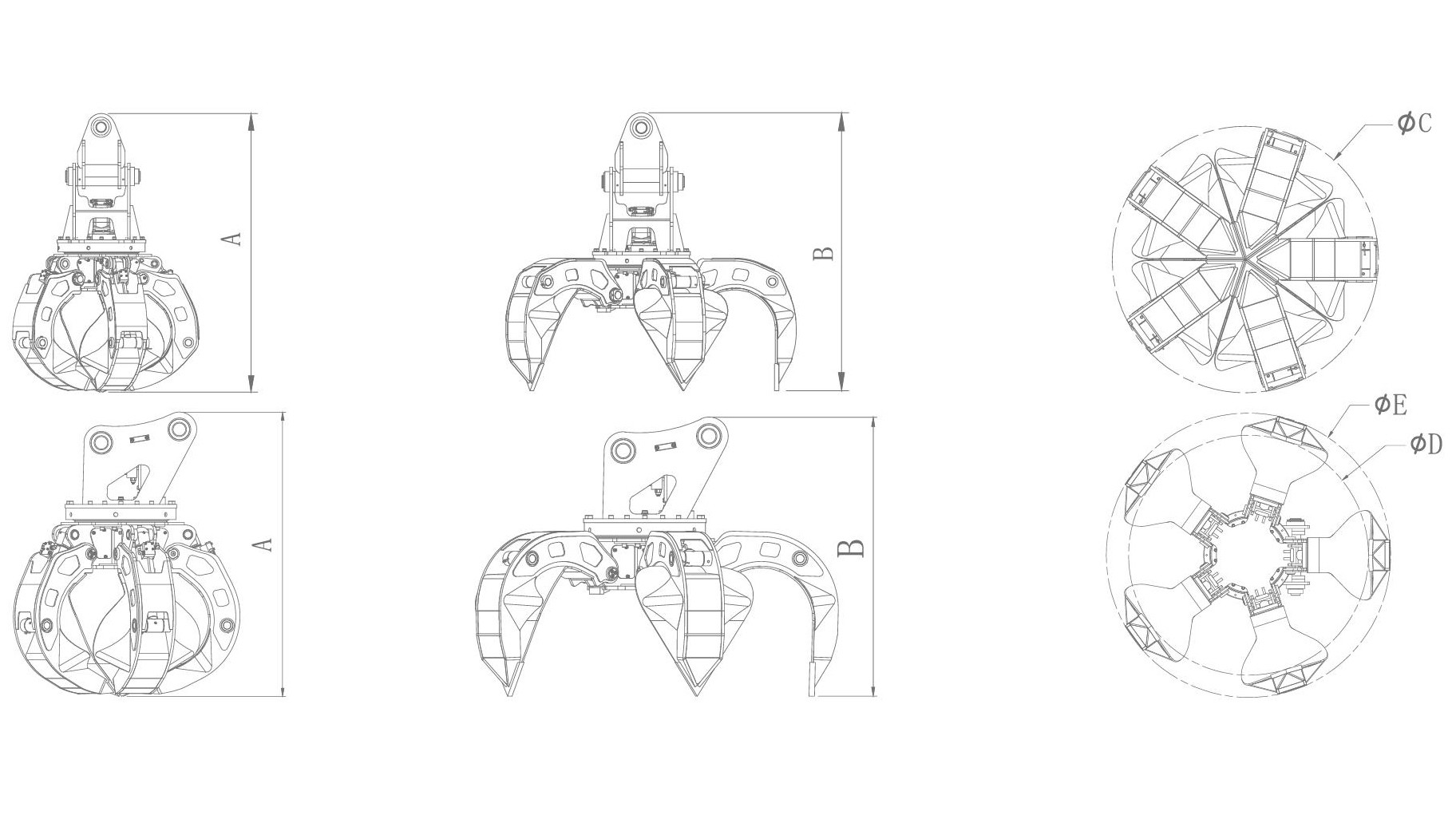

Dimensions		JFOG06/06P	JFOG06H/06PH	JFOG08/08P	JFOG08H/08PH	JFOG10	JFOG10H
A (Total Height - Closed)	mm	1520	1980	1720	2110	1830	2220
B (Total Height - Open)	mm	1340	1780	1530	1910	1590	1970
C (Overall Diameter - Closed)	mm	1365	1365	1505	1505	1680	1680
D (Max Opening Width)	mm	1650	1650	1800	1800	2050	2050
E (Overall Diameter - Open)	mm	1920	1920	2140	2140	2440	2440
