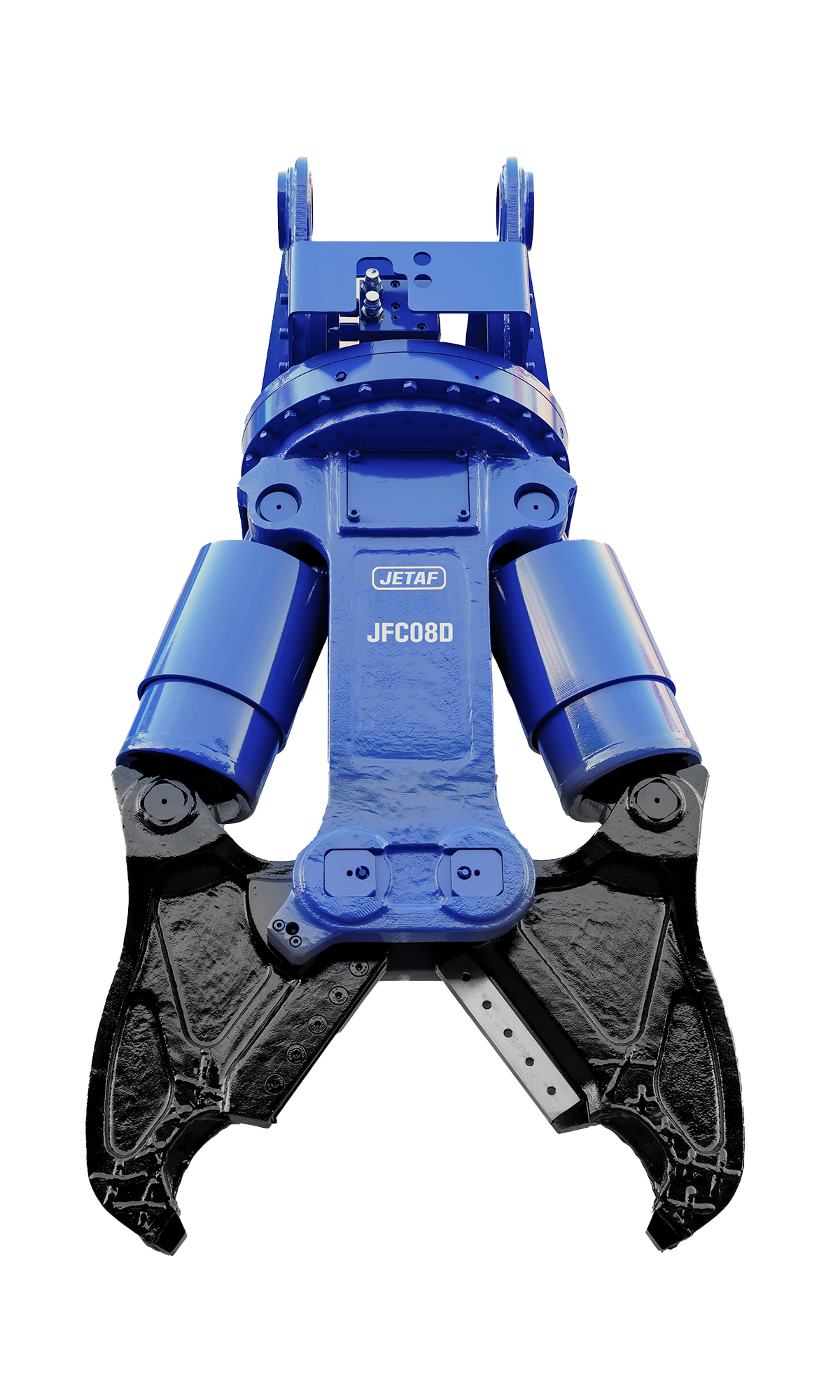

유압식 크러셔 (CC)

Specification		JFC08D CC	JFC15D CC	JFC20D CC
Max Opening Width	mm	581	846	1000
Weight	kg	570	2060	2680
Crushing Force	kN	278	886	1200
Shear Force	kN	700	2250	3020
Working Pressure (Cylinder)	kg/cm²	180-250	300-350	300-350
Oil Flow (Cylinder)	L/min	50-100	140-240	180-240
Working Pressure (Motor)	kg/cm²	60-90	120-160	120-160
Oil Flow (Motor)	L/min	20-30	30-50	30-50
Suitable Carrier	ton	6-13	17-25	26-35
Rotation Mode	-	Mechanical or Hydraulic Type 360° Free Rotation

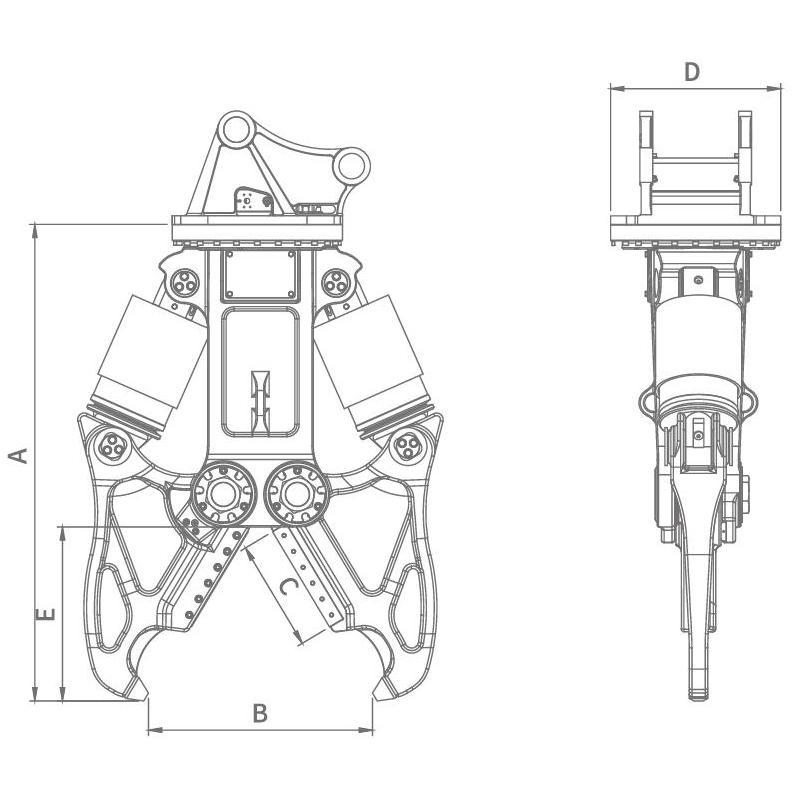

Dimensions		JFC08D CC	JFC15D CC	JFC20D CC
A (Total Length)	mm	1155	1815	2017
B (Max Opening Width)	mm	581	846	1000
C (Cutter Length)	mm	240	420	480
D (Overall Width)	mm	486	662	732
E (Jaw Depth)	mm	357	639	718
