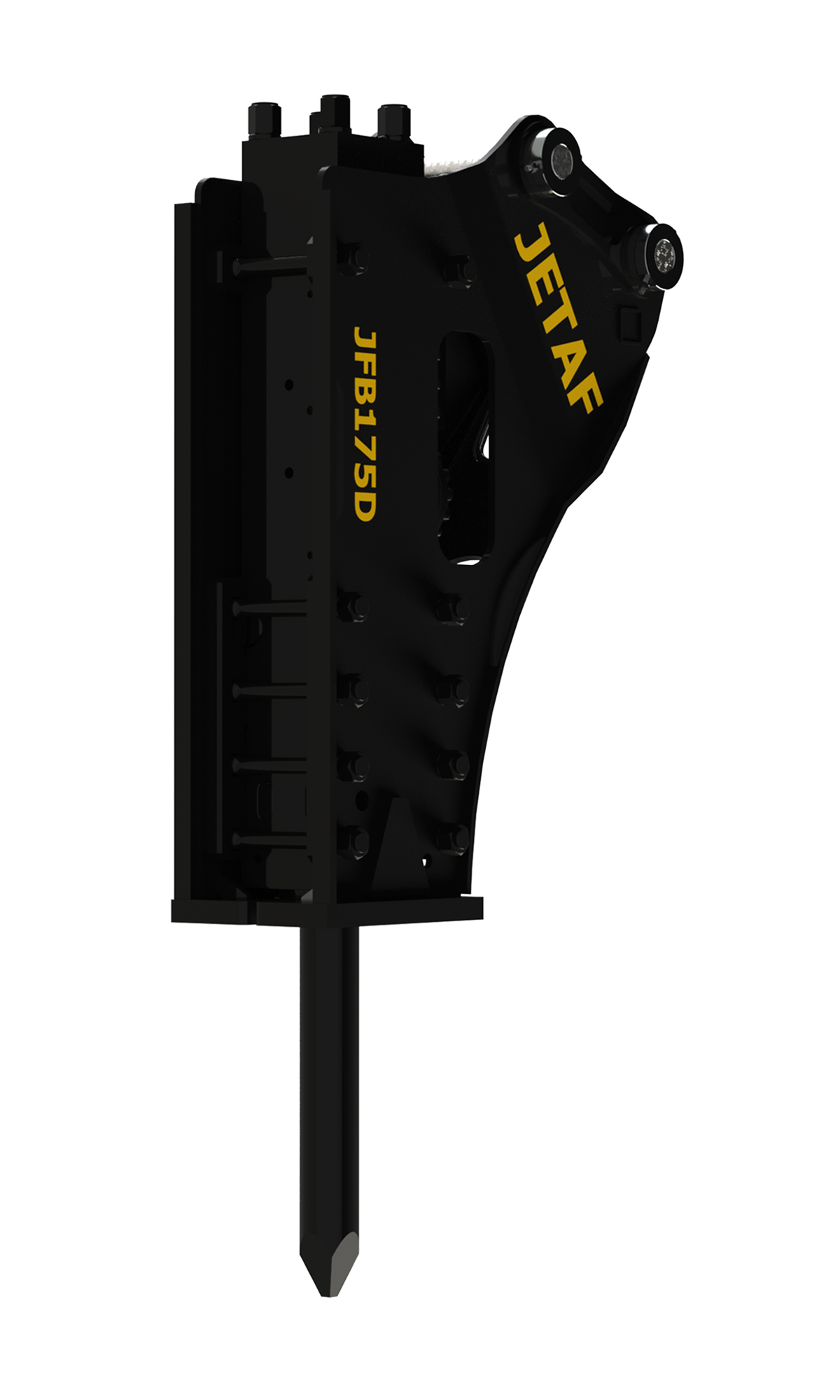

유압브레이커 사이드 타입

Inward Valve System			Small						Medium					Large
Inward Valve System			JFB10	JFB20	JFB30	JFB35	JFB40	JFB43	JFB45	JFB50	JFB60	JFB70A	JFB81A	JFB100	JFB121	JFB130	JFB151
Operation Weight	kg	Box	102	126	152	224	295	375	571	861	1296	1500	1825	2071	2635	2850	3990
		Top	72	92	150	250	275	295	500	795	1250	1450	1780	2100	2700	2995	4100
		Side	72	92	120	220	250	380	510	765	1255	1350	1770	2114	2440	2501	3789
		Backhoe					270	400	550
		Skid Top			180	280	320
Selection of Machine	ton		0.8-2.5	1.2-3.0	2.5-4.5	3.0-5.5	4.0-7.0	6-9	7-14	11-16	15-18	18-21	18-26	25-30	28-35	26-40	42-55
Relief Setting Pressure	bar		180-200	180-200	180-200	180-200	180-200	180-200	180-200	200-220	200-220	200-220	200-220	200-220	200-220	210-230	210-230
Required Oil / Flow Range	L/min		15-25	20-30	25-50	30-60	40-70	40-90	60-100	80-110	90-120	100-150	120-180	150-210	180-240	200-260	210-290
Operating Pressure	bar		90-120	90-120	90-120	100-130	110-140	110-140	130-160	150-170	150-170	160-180	160-180	160-180	160-180	160-180	160-180
Impact Rate	bpm		800-1400	700-1200	600-1100	500-1000	500-900	400-800	400-800	350-700	350-650	350-600	350-500	300-450	300-450	250-400	200-350
Rod / Chisel	mm		40	45	53	60	68	75	85	100	125	135	140	150	155	155	175
Impact Energy	joule		203	290	320	550	690	900	1300	2100	2900	3550	4200	5200	6500	9000	12000
Back Head Gas Pressure	bar (psi)		16 (223)

Outward Valve System			Medium		Large			Extra-Large
Outward Valve System			JFB20G	JFB30G	JFB40G	JFB165	JFB175	JFB185	JFB210
Operation Weight	kg	Box	1840	2540	3110	3800	5200	6200	8200
		Top	1740	2420	3020	4100	5500	6500	8500
		Side	1800	2530	2900	3540	4740	5500	7500
		Side Box				4100	5400	6400	8500
Selection of Machine	ton		18-22	27-30	35-45	38-48	46-65	65-85	75-120
Relief Setting Pressure	bar		190-210			230-250
Required Oil / Flow Range	L/min		130-150	150-180	190-250	190-230	220-270	220-290	290-350
Operating Pressure	bar		160-180			180-210
Impact Rate	bpm		400-800	350-750	250-500	200-350	200-300	200-250	180-200
Rod / Chisel	mm		135	150	160	175	185	195	210
Impact Energy	joule		3588	7000	9900	14500	16500	18500	22000
Back Head Gas Pressure	bar		6			16-18
